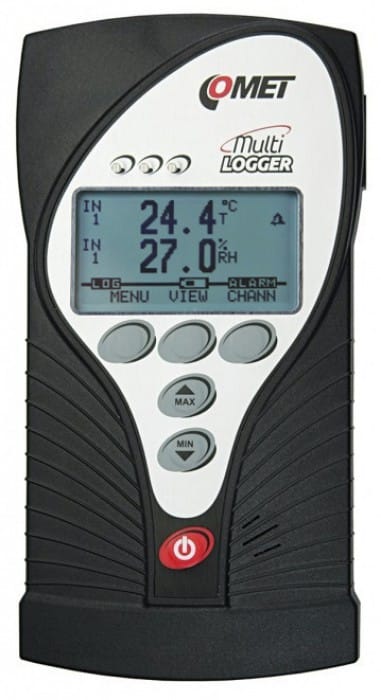

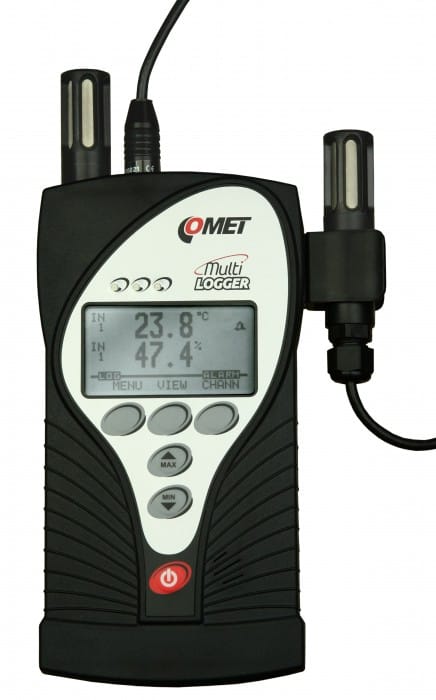

M1140多功能数据记录仪 - 温湿度计，4路MiniDIN输入通道

通用型数据记录仪，4路MiniDIN输入通道可用于连接温度与湿度探针。
多功能数据记录仪可固定长期连接以太网使用或作为便携式设备使用

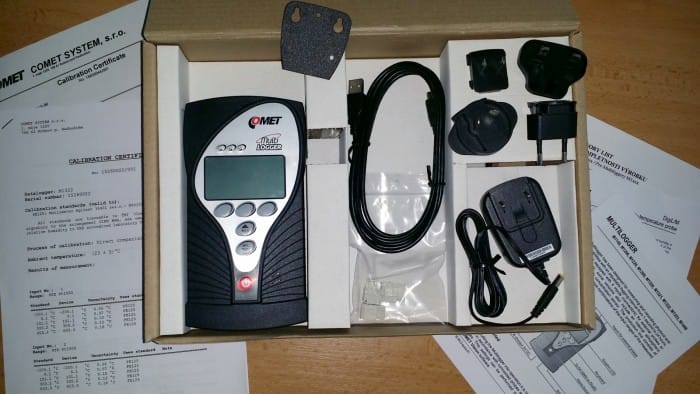

产品附有一份可追溯校准证书，基于ISO/IEC17025标准。

数据记录仪支持电池供电，通过输入通道可测量与记录传感器输出信号与常用电信号。
数据记录仪具备以太网接口，接入以太网可实现网页在线监测数据，并可将数据导出并保存。

型号

M1140
保

3 年

Send request

技术参数

测量参数

温度

相对湿度

计算值（露点温度...）

工作温度范围 -10 to +60°C

湿度测量范围 5% to 85%RH,无补偿

湿度传感器温度补偿范围温度量程范围内均可

测量间隔 1s至24小时

可用温度单位摄氏度, 华氏度

计算值露点温度、绝对湿度、比湿度、混合率、比焓

存储容量(approx.) 1 000 000记录值(非循环记录), 600 000记录值(循环记录)

IP防护等级 IP20

通信接口 Ethernet, USB, RS232

以太网通信协议 WWW, SNMPv1, XML, DATALINK

报警协议 E-Mail

配置 Comet Vision, WWW配置

电源 AC适配器230Vac/5Vdc (以太网接口需要)

电池 NiMH 3x可循环充电1.2V AA电池 (备份或便携式应用)货3x 1.5V AA碱性电池 (便携式应用)

电源接口同轴线缆, 直径5.5 x 2.1mm

尺寸 178 x 95 x 37mm (W x H x D),无连接线缆

产品特点

Applications:

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Aplikace - Sklady

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Aplikace - Průmysl

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Aplikace - Serverovny a datová centra

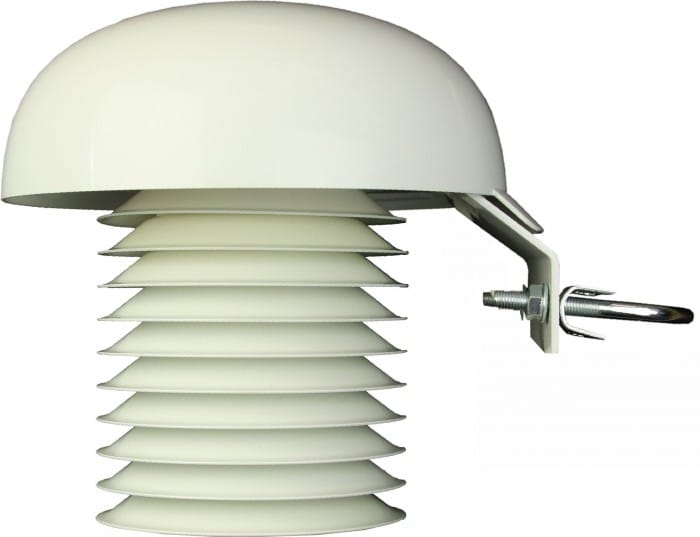

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Serverovny a datová centra

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Aplikace - Automatizace budov a HVAC

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

● the features may vary depending on the device type

● up to 6 hardware inputs for measuring and recording, 16 virtual channels for temperature, humidity, dew point, atmospheric pressure, current 0 - 20 mA and voltage 0 - 10 V (-60 to 140 mV), two-state events, pulses, CO2
● memory for 1 million values
● indication of alarm conditions via e-mail, SMS, integrated acoustic siren LEDs, stwo-state output to control other devices
● analytical software for data processing and configuration - COMET Vision
● communication interfaces - USB, RS232 and Ethernet (SNMPv1 and XML)

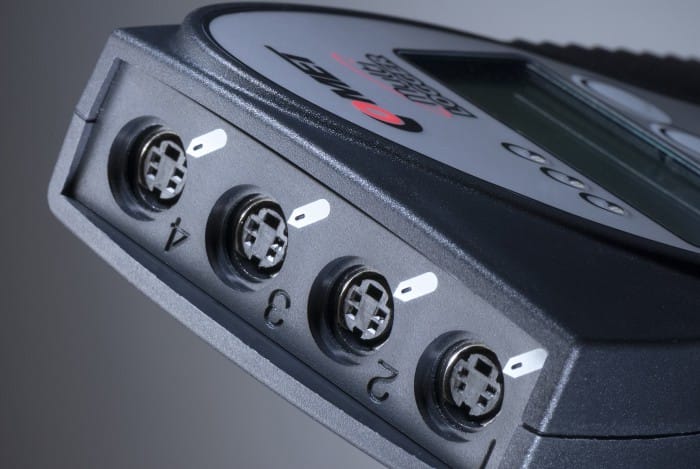

Up to 4 physical MiniDin Inputs

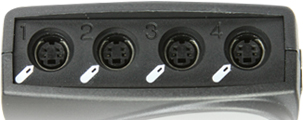

Multilogger M1140 inputs

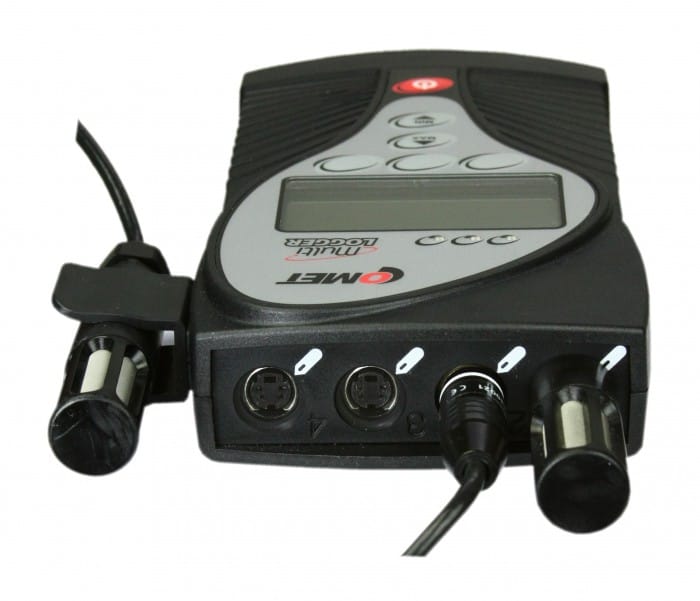

Removable MiniDin inputs allows connection of:

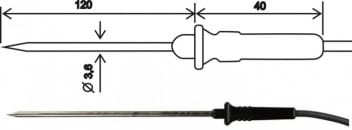

Temperature probes Pt1000 with built-in configuration memory (serie xxx/M)

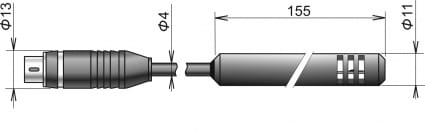

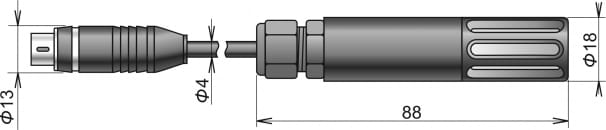

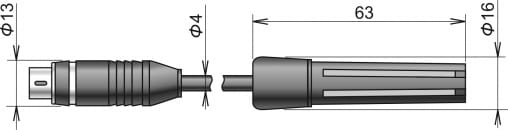

Temperature/relative humidity probes with digital output - DigiS/M, DigiL/M, DIGIH/M
The probes are interchangeable without calibration to a specific device and regardless of the length of the cable. The length of the cable can be 1, 2, 5, 10, 15 meters.

Evaluation of up to 16 variables

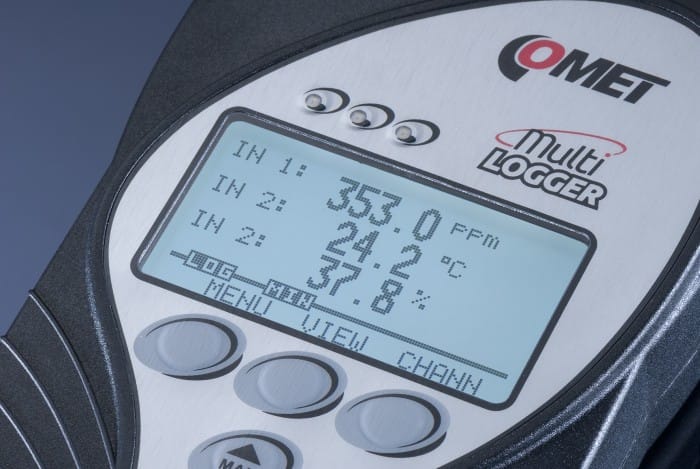

Multilogger - LCD detail

Up to 16 variables may be calculated from the four connected probes / sensors. This is the sum of the measured and calculated values. The calculated values can be a further expression of moisture – dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. It can be also the result of inter-channel conversions, e.g. the difference of two connected temperature probes.Multilogger LCD display detail.

The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits

Power supply

Multilogger - Power Supply

Multilogger - Power Supply

Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.

While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure. Thanks to the Ethernet output the device informs about the failure via e-mail message.

Alarm limits and alarm indication

Multilogger - Alarm limits

It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).

Alarm signalization can be acoustic (built-in beeper), optical, sending an e-mail alert or an alarm output. The alarm output is for connecting an external audio or visual alarm.

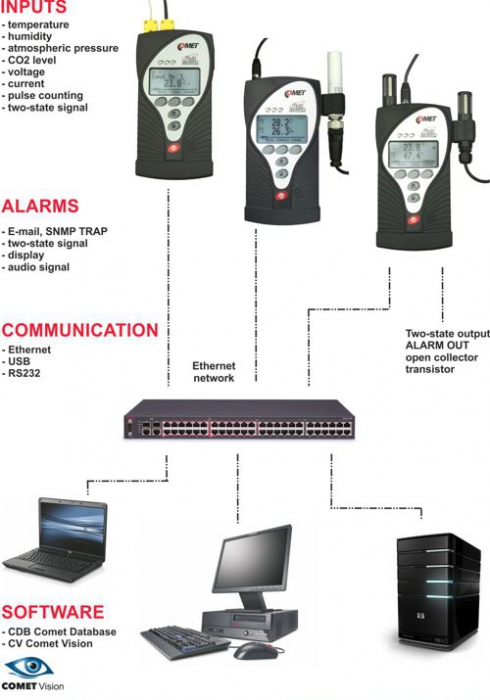

Communication interfaces

Multilogger - Alarm limits

Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.

Included Ethernet interface allows to:

send an e-mail when an alarm state starts or ends

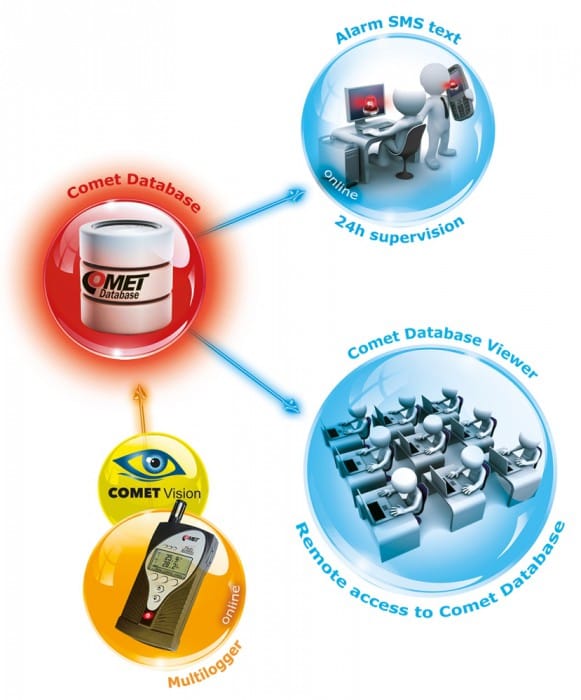

use DATALINK: display current values or download values from memory to COMET Database in your PC. Software COMET Database contains many useful tools for data analysis - graphs, tables, statistics, etc.
simple wireless communication with Wi-Fi TP-LINK router
third-party applications to read the actual measured values using universal protocols SNMPv1 and XML
view current measured values using your web browser

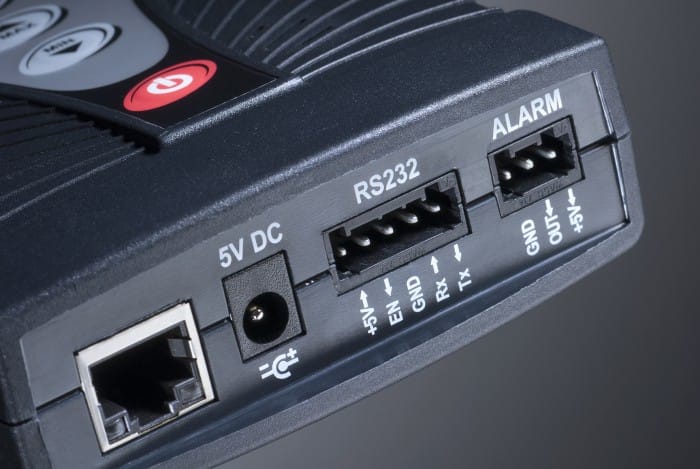

Output ALARM OUT

Multilogger - Alarm limits and alarm indication

Output can be used for controling other devices when alarm is launched, such as external buzzer, telephone dialer etc.
Type of output - open collector transistor
Max. switching current - 100 mA
Max. voltage on output - 24 V
Auxiliary voltage at terminal - +5 V (only when the mains supply is present)
Users can receive alarms if the values go outside the paramters set. Alarms are indicated through an internal buzzer , 3 LEDs or email alerts via Ethernet port.
