DSRH01 -温湿度探针，用于P系列网络传感器 - kopie

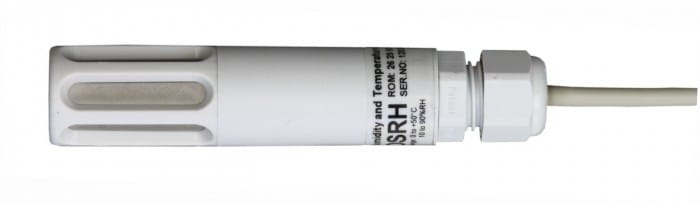

数字式温湿度探针,带有CINCH连接器，用于P系列网络传感器.测温范围：0-50℃.
The accuracy of COMET System digital probes only depends on the probe itself.
They can be calibrated independently from the device, making it easy to swap probes and avoid measurement problems during calibration.
-
型号DSRH01+
技术参数
测量参数
温度
相对湿度
(cn)Temperature operating range
0 to +50°C
Relative humidity operating range
0 to 100%RH (not condensing)
Accuracy of Relative humidity
±3.5% RH (10% – 90% RH) at 25°C
Accuracy of Temperature
± 0.5ºC from 0 to +50 ºC
Limit temperature condition (limited usage)
-30 to +80°C
IP protection
IP40
Available measured units
percent of Relative humidity, degrees Celsius, degrees Fahrenheit
Filtering ability of sensor cover
0.025mm - filter with stainless steel mesh
List of supported devices
P8511, P8541, P8631
Supported firmware P8xx1 versions
4-5-5.0 and later
Cable
PVC, length 1m
Connector
cinch (RCA)
可选配件
Manuals
Instruction Manual / Návod k použití
Declaration of Conformity
Confirmation of the functioning principles of digital probes made by COMET
