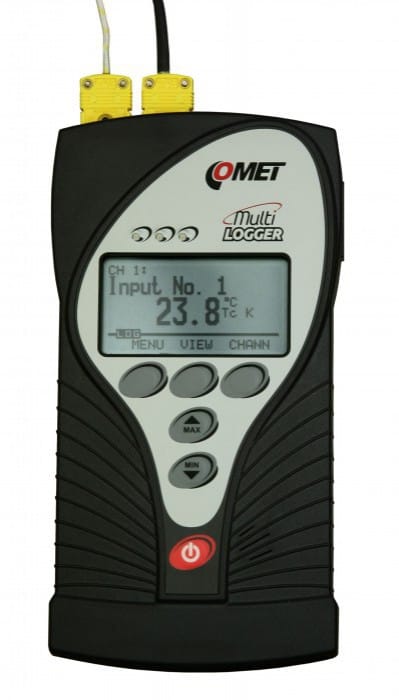

M1200E多功能数据记录仪 - 温度计，4路热电偶输入通道

Multilogger多功能数据记录仪采用电池供电，可以在设备自带显示屏上监测真实测量值，可通过Comet Vison软件获取历史数据，创建图表，PDF报告导出，MS Excel。
该设备设计用于测量和记录4路热电偶，支持热电偶类型：K, J, S, B, T, N.
产品附有一份可追溯的校准证书，基于EN ISO/IEC17025标准。

M1200E多功能数据记录仪采用电池供电，可以在设备自带显示屏上监测真实测量值，可通过COMET Vison软件获取历史数据，创建图表，PDF报告导出，MS Excel。该设备设计用于测量和记录4路热电偶，支持热电偶类型：K, J, S, B, T, N。产品附有一份可追溯的校准证书，基于EN ISO/IEC17025标准。

型号

M1200E
保

3 年

Send request

产品特点

Applications:

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

● the features may vary depending on the device type

● up to 6 hardware inputs for measuring and recording, 16 virtual channels for temperature, humidity, dew point, atmospheric pressure, current 0 - 20 mA and voltage 0 - 10 V (-60 to 140 mV), two-state events, pulses, CO2
● memory for 1 million values
● indication of alarm conditions via e-mail, SMS, integrated acoustic siren LEDs, stwo-state output to control other devices
● analytical software for data processing and configuration - COMET Vision
● communication interfaces - USB, RS232 and Ethernet (SNMPv1 and XML)

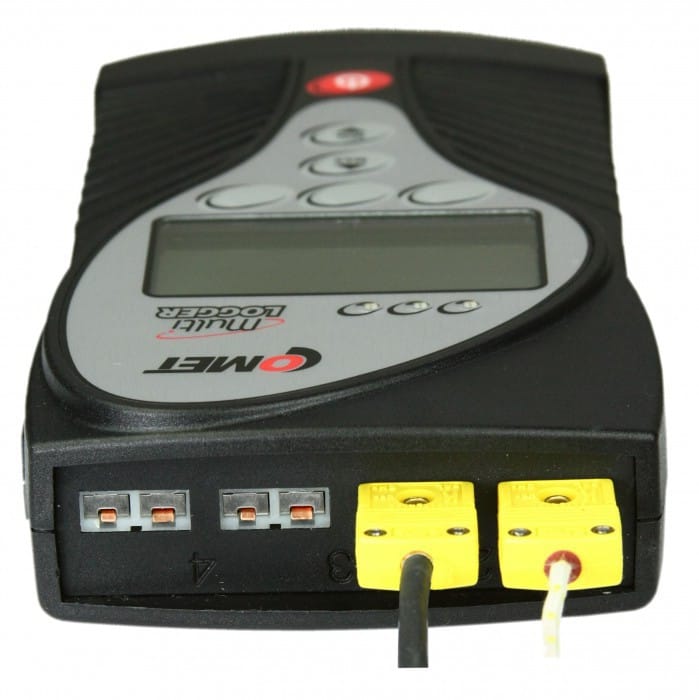

Up to 4 physical Thermocouple Inputs

Removable inputs allows connection of:

Themocouple probe K, J, S, B, T, N
Direct input of bipolar voltages with range up to -60 to +140 mV
Sensors with woltage output (range -60 to +140mV; accuracy ±100 µV or -18 to +18mV; accuracy ±20 µV)

Evaluation of up to 16 variables

Up to 16 variables may be calculated from the four connected probes / sensors. This is the sum of the measured and calculated values. The calculated values can be a further expression of moisture – dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. It can be also the result of inter-channel conversions, e.g. the difference of two connected temperature probes.Multilogger LCD display detail.

The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits

Power supply

Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.

While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure. Thanks to the Ethernet output the device informs about the failure via e-mail message.

Alarm limits and alarm indication

It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).

Alarm signalization can be acoustic (built-in beeper), optical, sending an e-mail alert or an alarm output. The alarm output is for connecting an external audio or visual alarm.

Communication interfaces

Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.

Output ALARM OUT

Multilogger - Alarm limits and alarm indication

Output can be used for controling other devices when alarm is launched, such as external buzzer, telephone dialer etc.
Type of output - open collector transistor
Max. switching current - 100 mA
Max. voltage on output - 24 V
Auxiliary voltage at terminal - +5 V (only when the mains supply is present)
Users can receive alarms if the values go outside the paramters set. Alarms are indicated through an internal buzzer , 3 LEDs or email alerts via Ethernet port.
