Pt1000TGL40/C,温度探针, 1米,带CINCH连接器
经济型多用途防水(IP67)温度探针,测量范围：-30至+80°C.
17241不锈钢探针,1米长PVC电缆连接,测量范围：-30至+80°C,带CINCH连接器.

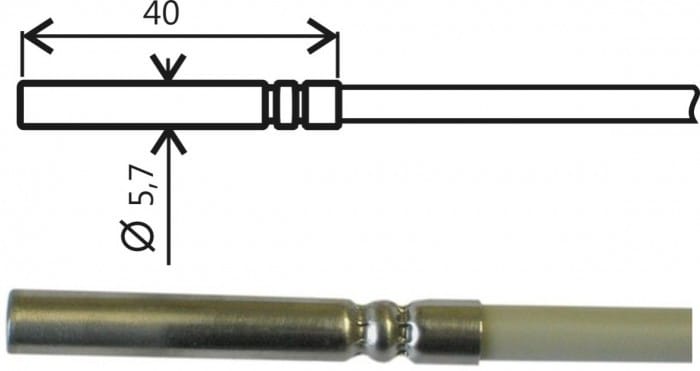

探针直径5.7mm, 长度40mm.
液体测量环境下，t63响应时间<10s, t95<30s.
1m/s气流测量环境下，t63响应时间<60s, t95<150s.
-
型号SN185C
技术参数
测量参数
温度
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
± (0.15 + 0.002 t) at °C
Accuracy class
A
Time response
t0.5 <7 s (in flowing water at > 0.2 m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
t63 <10s, t95 <30s (in liquid)
t63 <60s, t95 <150s (air flow 1m/s)
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
stainless steel DIN 1.4571
Dimensions of the case
length 40 mm;
diameter 5.7 ± 0.1 mm
diameter 5.7 ± 0.1 mm
Lead-in cable
PVC shielded
Length of lead-in cable
1 meter
Connector
CINCH
IP protection
IP67
Warranty
30 months
