TSensor

TSensor

Easy use configuration software temperature, humidity, pressure and CO2 COMET transmitters with analog, digital or Ethernet output - Series Pxxxx, Txxxx, Hxxxx.
For sensors with analog output is required SP003 communication cable and USB driver for this cable. Driver is installed automatically during setup program TSensor.
RS232 sensors communicates with the software via included connection cable with connector for RS232 interface.
For sensors with RS485 is needed RS485/232 converter – MP006.

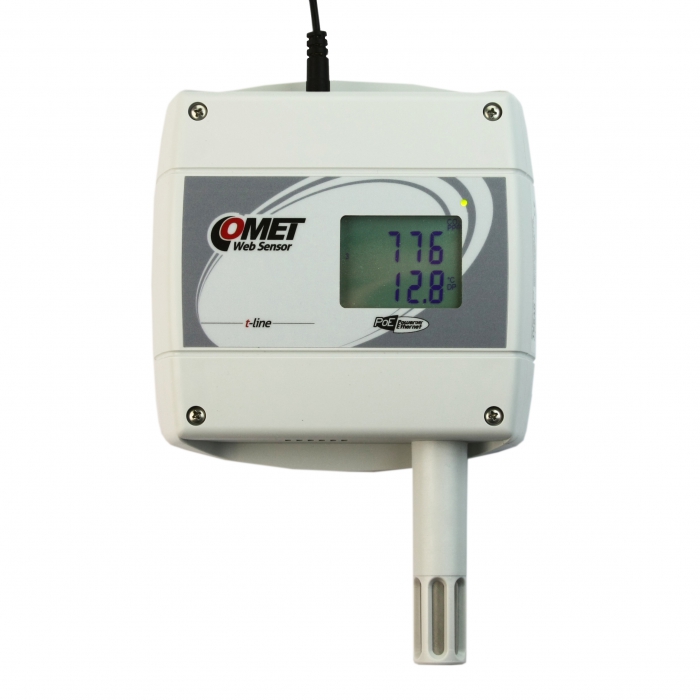

Transmitter with Ethernet output is configured for connection of sensors and a PC using an Ethernet cable or via built-in web server device.

Sensor Reader

Freeware program for displaying and logging data from one COMET sensor. Software for sensors with serial output (RS232, RS485) or Ethernet output to store measured values to a CSV file. Records can be processed in e.g MS Excel etc. For reading values is used Modbus protocol.

Software allows acoustic signalization of exceeded limits or the malfuction of sensor.

For display or record values from several transmitters with RS232/RS485 output the software Sensor RS485/232 utility and software COMET Database must be purchased.
To display or record the values from sensors with Ethernet output the software COMET Database must be purchased.

Minimum hardware and software requirements to install the COMET software

• Operating System: Windows 7 and later, or Windows Server 2008 R2 and later; . NET Framework 4 or 4.5, COMET Database 10.0 and higher
• Processor speed: 1.4GHz
• Memory: 1GB RAM

The licence is not portable and can be used only on PC where was installed.
The software on CD is sent on request, as an optional accessory.
