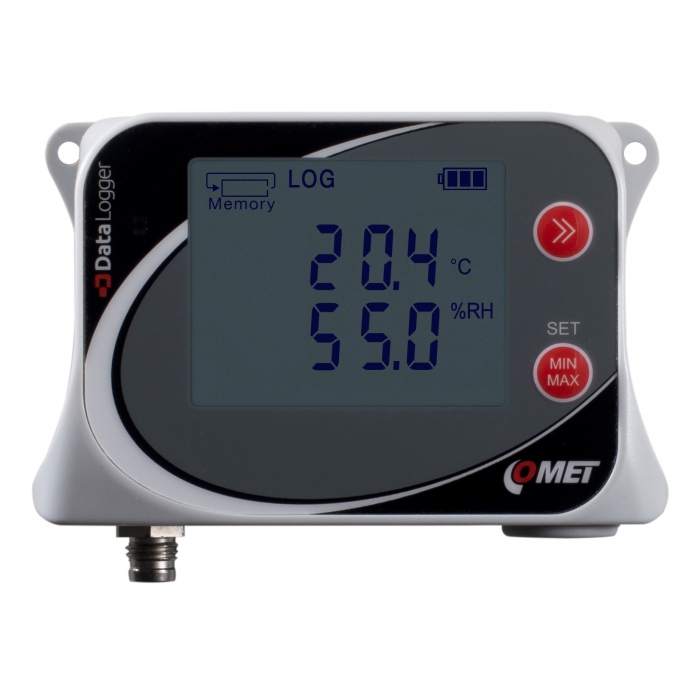

Temperature and humidity data logger for external probe

Data logger is designed to record temperature and humidity from external probe.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The temperature and humidity probe is not included in delivery, probe of the appropriate length and design you can choose in optional accessories.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

型号

U3121
保

3 年

Send request

技术参数

测量参数

温度

相对湿度

计算值（露点温度...）

TEMPERATURE SENSOR

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1 °C

Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 8 min

HUMIDITY SENSOR

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1% RH

DEW POINT

Measuring range according to the connected probe Digi/E

Accuracy according to the connected probe Digi/E

Resolution 0.1 °C

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C

Channels 1x connectable temperature+humidity probe

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

Recording interval adjustable from 1 s to 24 h

Display and alarm refresh adjustable 1 s, 10 s, 1 min

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power Lithium battery 3.6 V, size AA

Protection class IP67

Dimensions 61 x 93 x 32 mm

Weight (including batteries) approx. 120 g

Warranty 3 years
